J1534-5334

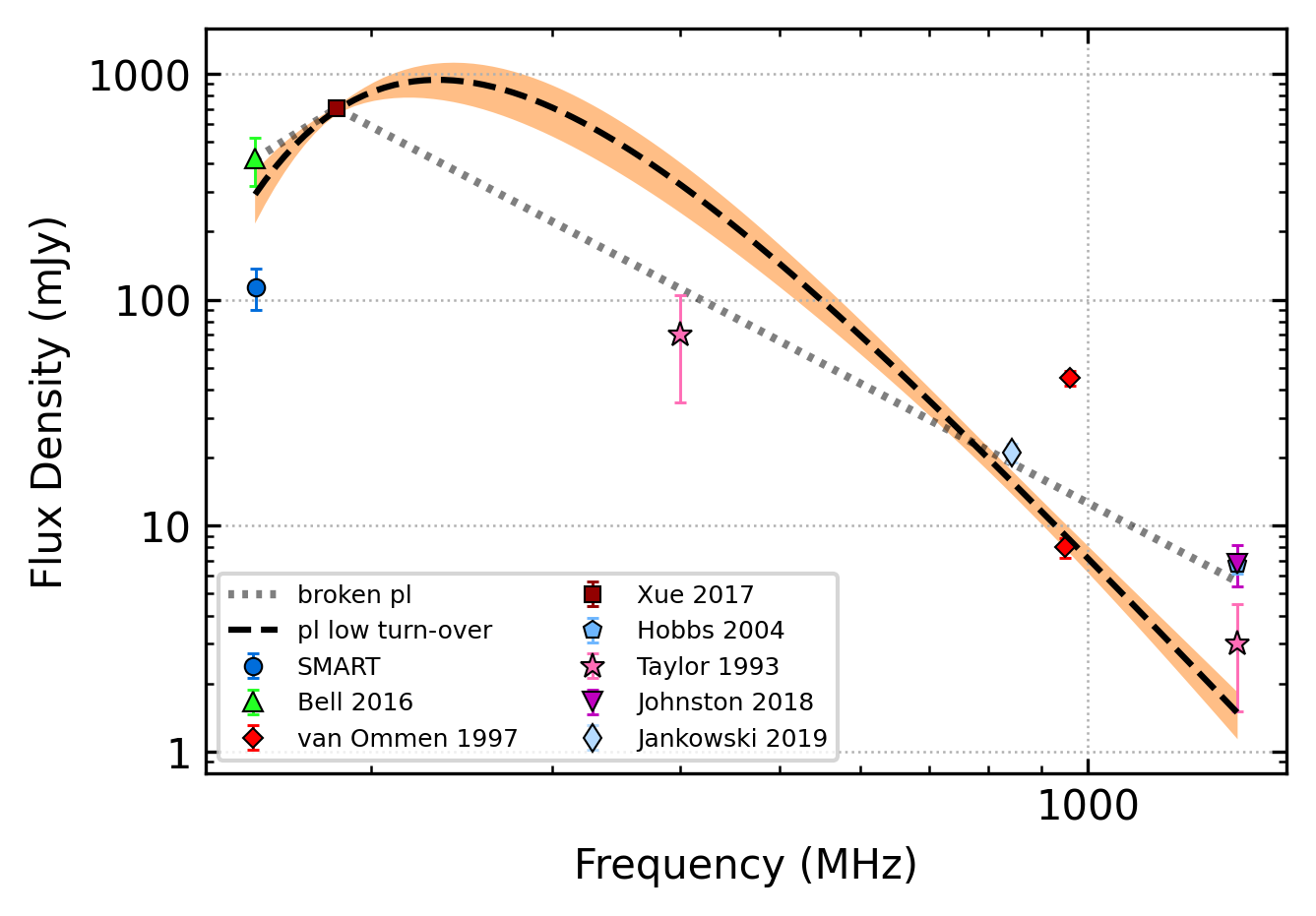

Best Fit

_images/J1534-5334_fit.png

J1534-5334 fit results
model	vc (MHz)	a	c	beta	v0 (MHz)
low_frequency_turn_over_power_law	232±11	-4.85±0.42	0.33±0.11	2.10±0.14	464±4

Fit Before MWA

J1534-5334 before fit results
model	vb (MHz)	a1	a2	c	v0 (MHz)
broken_power_law	184±1	2.81±1.83	-2.38±0.09	9.29±10.21	464±4

Flux Density Results

J1534-5334 flux density total results
N obs	Flux Density (mJy)	u_S_mean	u_scint	m_r_v
2	113.4±47.9	23.1	63.5	0.560

J1534-5334 flux density individual results
ObsID	Flux Density (mJy)
1302106648	132.0±16.2
1302282040	94.9±16.5

Comparison Fit

_images/J1534-5334_comparison_fit.png

Detection Plots

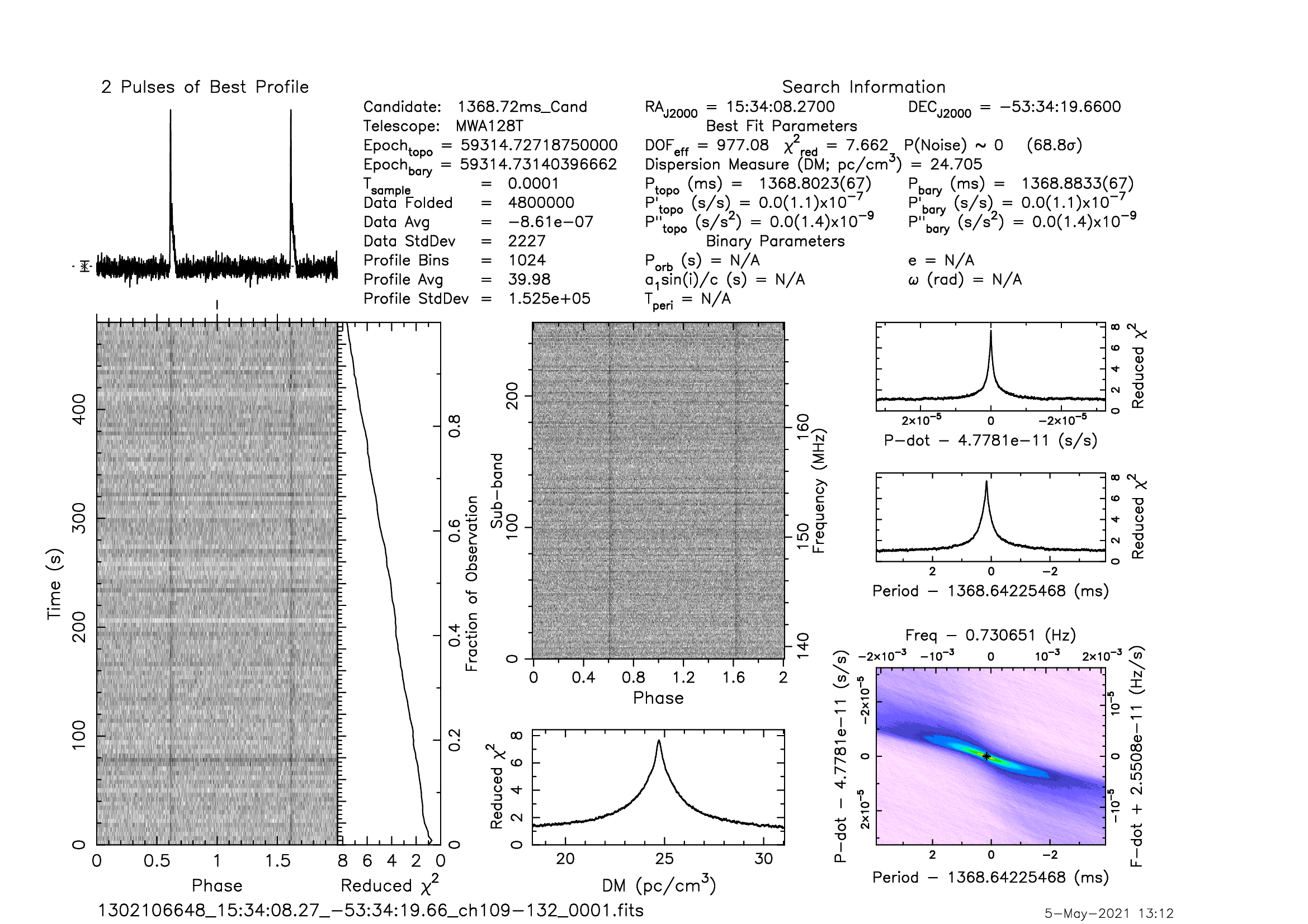

_images/pf_1302106648_J1534-5334_15%3A34%3A08.27_-53%3A34%3A19.66_b1024_1368.72ms_Cand.pfd.png

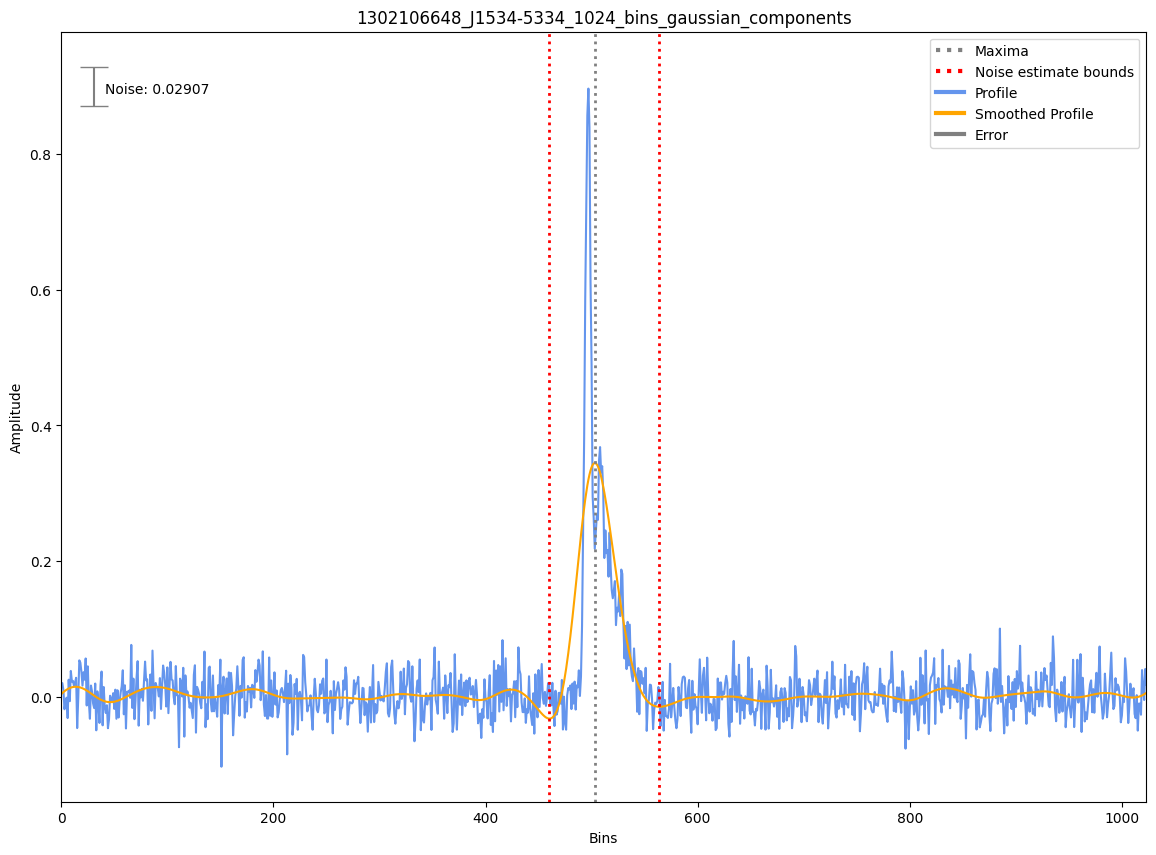

_images/1302106648_J1534-5334_1024_bins_gaussian_components.png

_images/pf_1302282040_J1534-5334_15%3A34%3A08.27_-53%3A34%3A19.66_b512_1368.73ms_Cand.pfd.png

on_pulse_plots/1302282040_J1534-5334_512_bins_gaussian_components.png
